A. Simao-Macau S.A.R-ST 1 at 88.0°E-K1 footprint South Asia: 12 701 H CHTI network Taiwan-analysis of the quality of the second packet in the horizontal polarization of the analyzer Rohde & Schwarz ETL+Promax Prolink 4C Premium

Posted July 1st, 2010 by Roman Dávid.

DX Forum

ST 1 at 88.0°E - K1/KU footprint South Asia : measurements at the center Macau - 60 km w of Hong Kong
                           geographical location : Latitude: 22.1987°_ Longitude: 113.5439°
                                        antenna tracking : AZ=230,231° and EL=50,628°
         measurement results are derived from the 900 cm diameter antenna
                                          date of measurement : 17.6.2010
                                                        elevation angle : 50,628°

ST 1 at 88.0° e :PF Vertex RSI 9.0m ST 1 footprint : K1 south Asia ST 1 at 88.0° e : measuring point

PF Vertex RSI 9.0 m : tracking position

.

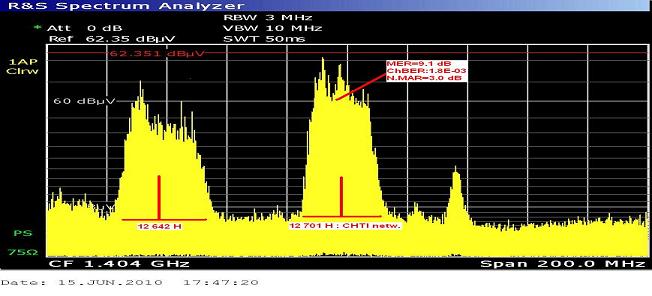

ST 1 at 88.0°E - K1 footprint South Asia : 12 701 H CHTI netw. / spectral analysis

.
click to enlarge

.

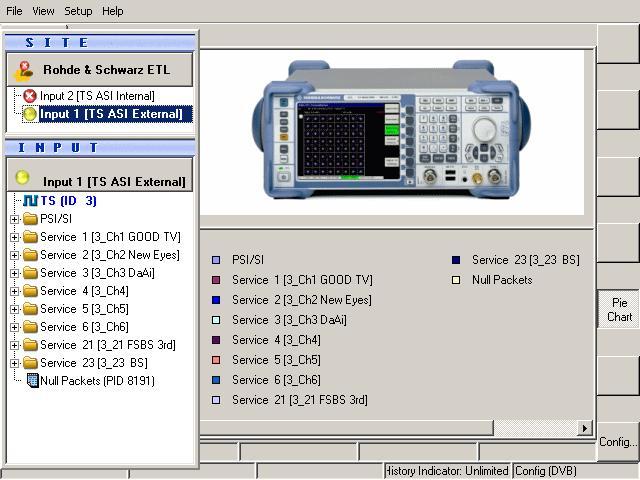

ST 1 at 88.0°E - K1 footprint South Asia : 12 701 H CHTI netw. / quality analysis + NIT

.
                           ST 1 at 88.0°E : analysis of the quality of receiver Tandberg TT1260
   ST 1 at 88.0 e _ K1 footprint KU band_12 701 H Q analysis_TT 01
.                                                     Tandberg TT1260 : quality analysis + NIT


                                                                      download pdf document

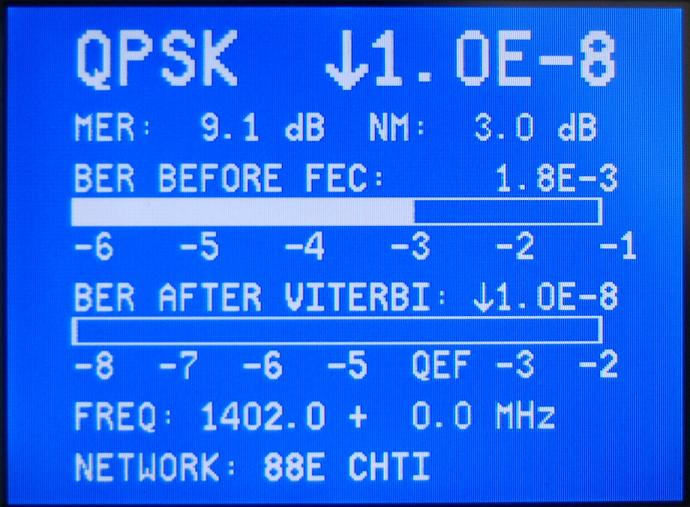

ST 1 at 88.0°E - K1 footprint South Asia : 12 701 H CHTI netw. / quality analysis

.
ST 1 at 88.0°E : analysis of the quality of analyzer Promax Prolink 4C Premium
.
ST 1 at 88.0°E : MER,NM,CH BER ST 1 at 88.0°E : Channel Power ST 1 at 88.0°E : C/N

.
