NSS 6 at 95.0°E

NSS 6 at 95.0°E : Technical data

.
                                       --- NSS 6 at 95.0°E-middle east beam : 11 132 V Alau TV / MERp=13.6 dB ---
                                                                                        click for enlarge
NSS 6 at 95.0e-middle east beam-11 132 V Alau tv-02 n

               satellite : NSS 6 - Orbital position : 95.0°E - TP : 50 KU/12 KA - Lifetime : from 17.12.2002 - 12 years

.

NSS 6 at 95.0°E - Middle East footprint : spectral analysis & measurement results

.

     NSS 6 at 95.0°E - Middle East footprint : measurements taken in the town of Lučenec / central Slovakia
                                     geographical location :
Latitude: 48.33°  _   Longitude: 19.72°
                                 measurement results are derived from the 3.7 m diameter antenna
                                          ground without obstacles in the horizon length to 1000 m
                                                          date of measurement : 20.11.2010
                                                                    elevation angle : 1.0°

.

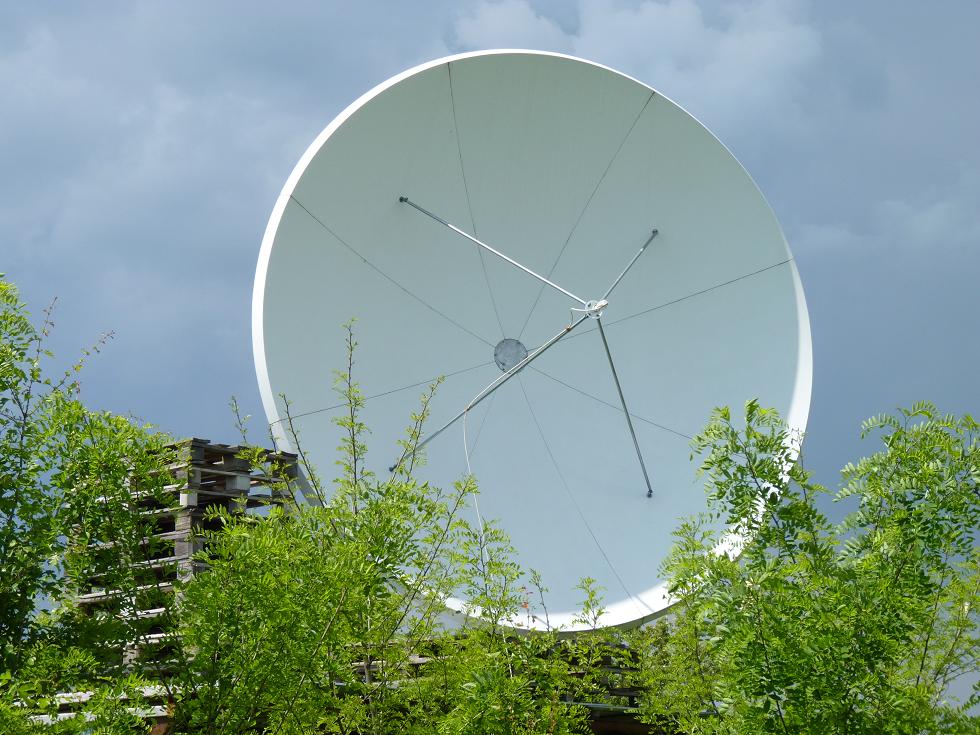

           NSS 6 : installed system                       NSS 6 : reception limit in terms                NSS 6 : research point
                 Prodelin 3.7 m                             of elevation angle in Central Europe      town Lučenec / Slovak republic
dxsatcs waveguide line+Norsat 4206 CF                                                                                 48.33° _ 19.72°
NSS 6 at 95.0 e_ Middle East beam_PF Prodelin 3.7 m_01NSS 6 at 95.0e-middle east beam-reception limit in terms of elevation angle in Central Europe NSS 6 at 95.0 e_ Middle East beam _reception point at lucenec slovakia_01

                                                          --- NSS 6 at 95.0°E : Middle East beam in KU band ---

      possibility of reception is guaranteed in these areas : Middle East , Asia , Eastern and part of central Europe ...
                                 click for enlarge                                                                     click for enlarge
NSS 6 at 95.0 e_ Middle East beam-01-nNSS 6 at 95.0 e_ Middle East beam-02-n

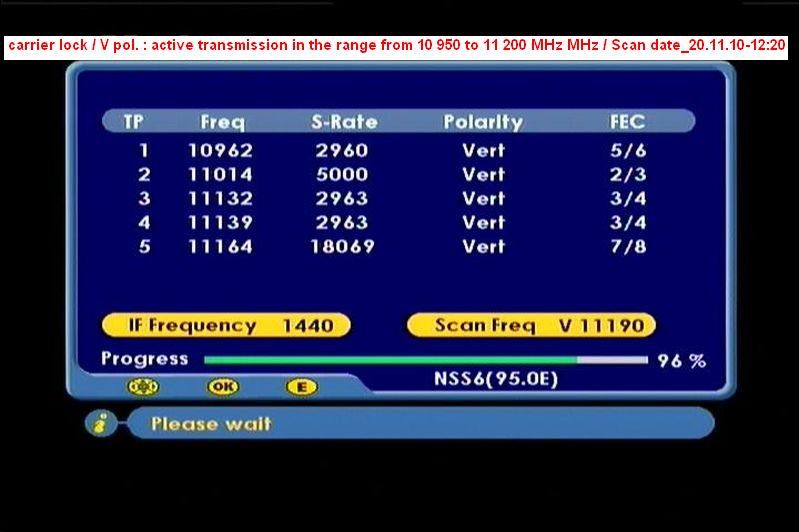

         --- NSS 6 at 95.0°E : summary from the locked carrier in the frequency range of 10 950 to 11 200 MHz_V pol. ---
                                                                   scan date : 20.11.2010 _ 12:20 pm
                                                                                   click for enlarge
             NSS 6 at 95.0e-middle east beam-carrier lock n

                           ---  NSS 6 at 95.0°E : spectral analysis of transponders TP MEVA 1 , MEVA4 , MEVB2-3-4  ---

        NSS 6 : spectral analysis No.1                NSS 6 : spectral analysis No.2               NSS 6 : spectral analysis No.3
             10 962 V : Asyl Arna                   11 131+11 140:Alau TV,Kazakstan tv               11 450 - 11 700 MHz_V
 NSS 6 at 95.0 e_ Middle East beam _10 962 V Asyl Arna_spectral analysisNSS 6 at 95.0e-middle east beam-TP MEVA4 spectral analysis-w  NSS 6 at 95.0 e_ Middle East beam _spectral analysis 11 450 to 11 700 MHz
                                                                    - time of measurement : 20.11.2010 -
                                                                        - defining the status of reception -

10 962 V Asyl Arna : non-cyclical and constantly changing amplitude of the quality of a wide range of peaks from the
treshold level at MER=5 dB to a peak at MER=18+ dB within a period of only 180 sec .

11 131 V Alau TV : within the time frame of thirty minutes I identified non-cyclical changes in quality, but only to the extent
of the gain margin from MER=10.5 to 14 dB_Ch BER=6x10-6 without any instability in the carrier lock.Approximately once per
time slot sixties minutes the quality reaches the peak level of zero instantaneous BER for channel_bBER=<1x10-6 .

11 140 V Kazakstan TV : permanent and non-cyclical oscillation of quality in a wide range:MER= +/- 4 dB_ from < 5 dB to
13 dB_within a period of 180 sec
.
                                          NSS 6 at 95.0°E - Middle East footprint : quality analysis of reception

                                                NSS 6 at 95.0° - Middle East footprint : 10 962 V Asyl Arna
                         IF data                                                     Q data                                                NIT data
NSS 6 at 95.0 e_ Middle East beam _10 962 V Asyl Arna_ IF dataNSS 6 at 95.0 e_ Middle East beam _10 962 V Asyl Arna_ Q dataNSS 6 at 95.0 e_ Middle East beam _10 962 V Asyl Arna_ NIT data

                                                 NSS 6 at 95.0° - Middle East footprint : 11 017 V DVB-S Data
                         IF data                                                spectral analysis                                          NIT data
NSS 6 at 95.0 e_ Middle East beam _11 017 V DVB S data_ IF dataNSS 6 at 95.0 e_ Middle East beam _11 017 V DVB S data_ spectral analysisNSS 6 at 95.0 e_ Middle East beam _11 017 V DVB S data_ Q analysis

                                              NSS 6 at 95.0° - Middle East footprint : 11 131 V Alau TV
                         IF data                                                     Q data                                                NIT data
NSS 6 at 95.0e-middle east beam-11 132 V Alau tv-IF dataNSS 6 at 95.0e-middle east beam-11 132 V Alau tv-Q dataNSS 6 at 95.0e-middle east beam-11 132 V Alau tv-NIT data

                                NSS 6 at 95.0° - Middle East footprint : 11 140 V Kazakstan TV Kokshetau
                         IF data                                                     Q data                                                NIT data
NSS 6 at 95.0 e_ Middle East beam _11 140 V Kazakstan TV_ IF dataNSS 6 at 95.0 e_ Middle East beam _11 140 V Kazakstan TV_ Q dataNSS 6 at 95.0 e_ Middle East beam _11 140 V Kazakstan TV_ NIT data

                                          NSS 6 at 95.0° - Middle East footprint : 11 165 V DVB-S Data
                   spectral analysis                                            Q data                                                  NIT data
NSS 6 at 95.0 e_ Middle East beam _11 165 V DVB S data_ spectral analysisNSS 6 at 95.0 e_ Middle East beam _11 165 V DVB S data_ Q dataNSS 6 at 95.0 e_ Middle East beam _11 165 V DVB S data_ NIT data

                                                 NSS 6 at 95.0° - Middle East footprint : 11 542 V DVB-S Data
                   spectral analysis                                            Q data                                                  NIT data
NSS 6 at 95.0 e_ Middle East beam _11 542  V DVB S data_ spectral analysisNSS 6 at 95.0 e_ Middle East beam _11 542  V DVB S data_ IF dataNSS 6 at 95.0 e_ Middle East beam _11 542  V DVB S data_ Q data

                                               NSS 6 at 95.0° - Middle East footprint : 11 594 V DVB-S2 Data
                   spectral analysis                                            Q data                                                  NIT data
NSS 6 at 95.0 e_ Middle East beam _11 594  V DVB S2 8PSK data_ spectral analysisNSS 6 at 95.0 e_ Middle East beam _11 594  V DVB S2 8PSK data_ IF dataNSS 6 at 95.0 e_ Middle East beam _11 594  V DVB S2 8PSK data_ Q data

NSS 6 at 95.0°E : TV List



NSS 6 at 95.0 e_ Middle East beam_PF Prodelin 3.7 m 02


-----Frequency-----


---------Provider/Channel---------

---SR--- ---FEC--- ------Footprint------ ---Antenna--- ---DVB/Encryption---

10 962 -V- tp MEVA1

Asyl Arna   watch video 2 960 5/6

Middle East/Europe

120-240+ cm

DVB-S / FTA

11 014 -V-tp MEVA1

Data

5 000 2/3 Middle East/Europe 120-240+ cm DVB-S / data



11 037 -H-tp INHA2

Dish TV India - comming soon

40 700 2/3 India 240-400+ cm DVB/MPEG-2



TV 5 Monde Asia         SECA
  ETV Telegu         Conax
  CNBC Awaaz         Conax
  ETV Bangla         Conax
  ETV Kannada         Conax
  ETV Urdu         Conax
  ETV Gujarati         Conax
  ETV Oriya         Conax
  ETV 2         SECA
  ETV Uttar Pradash         SECA
  NE TV         Conax
  CNN IBN         Conax
  NG India         Conax
  FOX History         Conax
  Hungama TV         Conax
  Disney Ch. India         Conax
  Toon Disney India         Conax
  Channel V India         Conax
  UTV Movies         SECA
  Bindass Movies         SECA
  Kasturi TV         Cona

11 090 -H- tp INHA3

CGN TV

29 500 7/8 India 400-600+ cm DVB-S / MPEG-2

11 113 -V- tp MEVA3

Data

1 627 3/4 Middle East/Europe 120-240+ cm DVB-S / data

11 131 -V- tp MEVA4

Alau TV watch video   watch video

2 963 3/4 Middle East/Europe 120-180+ cm DVB-S / FTA

11 140 -V- tp MEVA4

Kazakstan TV / Tandberg service
     watch video         watch video

2 963 3/4 Middle East/Europe 140-240+ cm DVB-S / FTA

11 165 -V- tp MEVA4

Data

18 069 7/8

Middle East/Europe

120-240+ cm

DVB-S / data

11 172 -H-tp INHA5

Dish TV India 27 500 3/4 India 240-400+ cm DVB/MPEG-2
  ETC Punjabi         Conax
  Star Sports         Conax
  Zee Action         Conax
  Zee Classic         Conax
  Zee Premier         Conax
  Pogo         Conax
  VH 1 India         Conax
  Star World         SECA
  Star Gold         SECA
  Star Movies         SECA
  Star News         Conax
  Times Now         Conax
  Dish TV Interactive promo          FTA

11 542 -V-tp MEVB2

Data Falcon Stream 40 000 7/8 Middle East/Europe 120-240+ cm DVB-S / data

11 594 -V-tp MEVB3

Data  27 000  9/10 Middle East/Europe 240+ cm DVB-S2/8PSK data

11 634 -H-tp MEHB4

Data PCR_PMT 13 331 7/8 Middle East/Europe 120-240+ cm DVB-S / data

11 651 -V- tp MEVB4

feeds SatLink / no service 3 333 3/4 Middle East/Europe 120-240+ cm FTA

11 661 -H- tp MEHB5

feeds GlobeCast / no service 5 632 3/4 Middle East/Europe 120-240+ cm FTA

11 670 -V- tp MEVB5

Data NSS 6 1,2 5 000 3/4 Middle East/Europe 120-240+ cm DVB-S / data

11 680 -V- tp MEVB5

Data

2 000 3/4 Middle East/Europe 120-240+ cm DVB-S / data

12 535 -V-tp INVC1

Dish TV India 40 700 3/4 India 240-400+ cm DVB
  ZEE JAGRAN         FTA
  MAA TV         SECA
  ESPN India         SECA
  MGM Asia         Conax
  ZEE TELEGU         Conax
  SAMAY TV         SECA
  SAHARA ONE         Conax
  FILMY         Conax
  STAR PLUS         Conax
  STARE ONE         Conax
  ZOOM TV         SECA
  BBC WORLD         SECA
  RAJ DIGITAL         Conax
  RAJ TV         Conax
  GEMINI NEWS         SECA
  ISAI ARUVI         SECA
  NDTV IMAGINE         SECA
  NDTV Good Times         SECA
  ETV Rajasthan         Conax
  Shalom TV         SECA
  Focus TV         SECA
  Star Pravah         Conax

12 595 -H-tp INHC2

Dish TV India 40 700 3/4 India 240-400+ cm DVB
  Bhakti Mosaic         FTA
  DISH News Activ         active services
  ZEE News         Conax
  Asianet News         SECA
  Asianet plus         SECA
  ETV Marathi         SECA
  GAMES ACTIVE         active services
  Star Vijay         SECA
  NDTV Profit         SECA
  TV 5 Monde Asia         SECA
  Mahua TV         SECA
  Hamar TV         SECA
  WB Movies India         SECA
  Zee News UP         SECA
  MOVIE ON DEMAND 1         SECA
  MOVIE ON DEMAND 2         SECA
  MOVIE ON DEMAND 3         SECA
  MOVIE ON DEMAND 4         SECA
  MOVIE ON DEMAND 5         SECA
  MOVIE ON DEMAND 6         SECA

12 595 -V-tp INVC2

Dish TV India 40 700 3/4 India 240-400+ cm DVB
  SS MUSIC         SECA
  24 GHANTA         SECA
  FASHION TV India         SECA
  INDIA TV         SECA
  ASIANET         SECA
  PLAY TV India         SECA
  ZEE 24 TAAS         Conax
  LIVE INDIA         SECA
  MI MARATHI         SECA
  NEPAL 1         SECA
  ZEE TALKIES         Conax
  AAKAASH BANGLA         SECA
  JAYA TV         SECA
  TV 9 KANNADA         SECA
  TV 9 TELEGU         SECA
  TBN         SECA
  VOICE OF INDIA         SECA
  CNEB         SECA
  ZEE Tamil         FTA
  REAL         Conax
  Star Ananda         Conax
  Suvarna         Conax

12 638 -V-tp INVC3

Dish TV India 13 300 2/3 India 240-400+ cm DVB
  ICICI data         active services
  AAJ TAK         SECA
  OTV         SECA
  PTC Punjabi         SECA
  COLORS         SECA
  ICICI ACTIVE infocard         FTA
  ZEE 24G CHHATTI         SECA
  Star Majha         SECA

12 647 -H-tp INHC3

Dish TV India 27 500 3/4 India 240-400+ cm DVB
  Dish 999 Active promo         FTA
  NDTV India         Conax
  SONY         SECA
  Discovery         Conax
  Discovery Travel & Living         SECA
  Animal Planet         SECA
  SAB TV         SECA
  AXN India         SECA
  Nickelodeon India         SECA
  Animax India         SECA
  MTV India         SECA
  Ten Sports India         SECA
  PIX         SECA
  Naxatra News         Conax
  UTVi         Conax

12 688 -H-tp INHC4

Dish TV India 27 500 3/4 India 240-400+ cm DVB
  SUN TV         SECA
  KTV         Conax
  SUN MUSIC         SECA
  SUN NEWS         SECA
  CHUTTI TV         SECA
  UDAYA TV         SECA
  UDAYA MOVIES         SECA
  UDAYA VARTRHEGAL         SECA
  U2/UDAYA 2         SECA
  KIRAN TV         SECA
  SURYA TV         SECA
  GEMINI TV         SECA
  TEJA TV         SECA
  GEMINI MUSIC         SECA
  Kids Active         active services

12 688 -V-tp INVC4

Dish TV India 27 500 3/4 India 240-400+ cm DVB
  ZEE TV India         Conax
  Zing         Conax
  ZEE MARATHI         SECA
  ZEE PUNJABI         SECA
  ZEE BANGLA         SECA
  ZEE STUDIO         Conax
  ZEE CAFE         Conax
  ZEE KANNADA         Conax

12 729 -V-tp INVC5

Dish TV India 27 500 2/3 India 240-400+ cm DVB
  HBO Asia         Conax
  MAX India         Conax
  ZEE BUSINESS         Conax
  ZEE CINEMA         Conax
  ZEE SPORTS         Conax
  CARTOON NETWORK         Conax
  CNBC TV 18         Conax
  STAR CRICKET         Conax
  ZEE TRENDZ         Conax
  NDTV 24/7         Conax
  CNN South Asia         Conax
  ZEE 24 GHANTALU         Conax


.

NSS 6 at 95.0°E : relative quality & EPG info & stream infos

relative q 10 962 Vrelative q 11 132 Vrelative q 11 139 V

NSS 6 at 95.0°E : Video presentations



                     Go to Video section :
                  Watch Videos


NSS 6 at 95.0°E : Update prepare


                   dxsatcs logo

CZECH & SLOVAK DX SATELLITE CLUB

international professional portal
                                        think-tank
                        Roman Dávid - author & founder
                        mail :
roman.david@dxsatcs.com

NSS 6 at 95.0°E footprint : Indian Sub-continent SPOT/Middle East

            Middle East footprint                                    Indian footprint                                          all footprints

NSS 6 at 95.0 e_ Middle East beamNSS 6 at 95.0 e_ Indian footprintNSS 6 at 95.0 e_ footprints
.

NSS 6 at 95.0°E  Indian Sub-continent SPOT & Middle East SPOT : Last DX News

.
NSS 6 at 95.0°E - KU Middle East beam : DVB-S2/8PSK day on dxsatcs.com portal : NSS 6 at 95,0°E - Middle East beam :
first regular DVB-S2/8PSK broadcasting , first DVB-S2/Packer Error Rate_PER diagnostics , first 8PSK constellation analysis

NSS 6 at 95.0°E - KU Middle East SPOT : 11 643 H New DATA Provider PCRGPMT

NSS 6 at 95.0°E - KU Indian Sub-continent SPOT : 12 595 H Packet Dish TV India

NSS 6 at 95.0°E : Two data providers from Middle East beam

NSS 6 at 95.0°E Indian beam : 12 638 V Packet Dish TV India

.

NSS 6 at 95.0°E - Middle East spot : snapshots

Kazakhstan tv Kokshetau 01Alau tv 02Alau tv 03
Kazakstan tv  01Kazakstan tv  02Kazakstan tv  03
