Mr. Alberto Simao-Macau S.A.R_ Intelsat 10 at 68.5°E-Global footprint in C band : 3 808 V RRSat Global & 4 034 V DD Doordarshan India_current status of quality derived from the antenna diameter 900 cm in South Asia with equipment Rohde & Schwarz

Posted May 28th, 2010 by Roman Dávid.

DX Forum

Intelsat 10 at 68.5°E - Global footprint : measurements at the center Macau - 60 km w of Hong Kong
                          geographical location : Latitude: 22.1987°_ Longitude: 113.5439°
         measurement results are derived from the 900 cm diameter antenna
                                       date of measurement : 19.4.2010
                                                         elevation angle : 33.055°

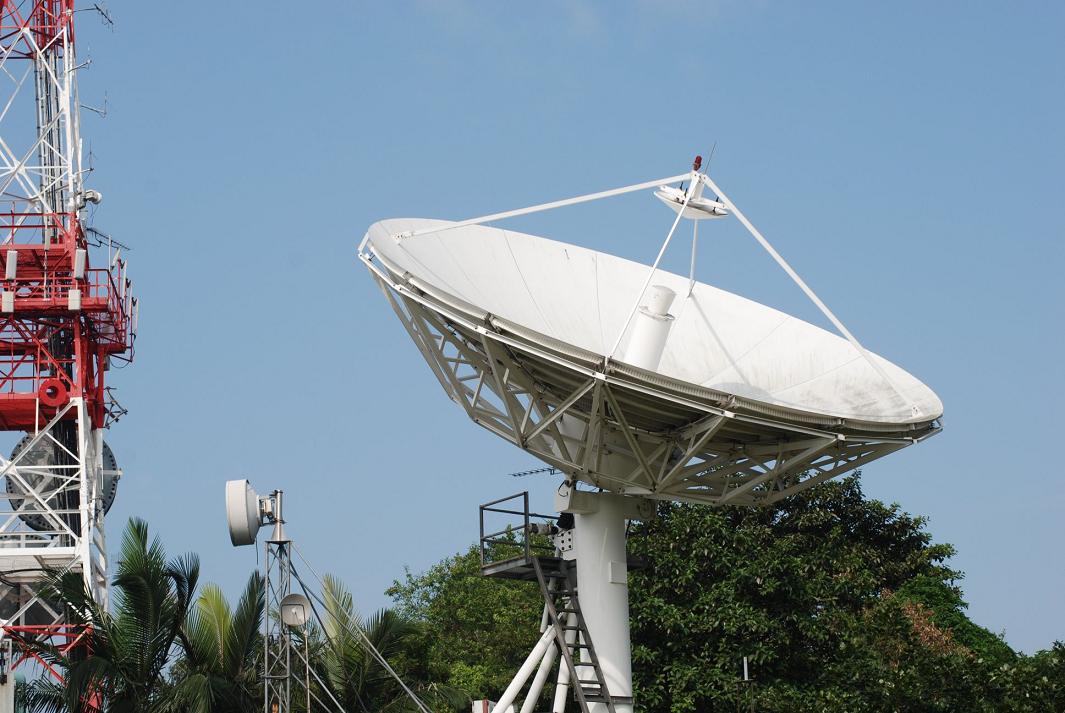

Intelsat 10 at 68.5°E : PF Vertex 900 cm / antenna tracking

Intelsat 10 : PF Vertex RSI 9.0m Intelsat 10 global footprint Intelsat 10 : measuring point

.
Intelsat 10 at 68.5°E-Global footprint : spectral & quality analysis with the Rohde & Schwarz ETL / Promax Prolink

.
1 - 3 808 V : Packet RRSat Global

3 808 V : Q anaylsis 3 808 V : Channel Power 3 808 V : C/N

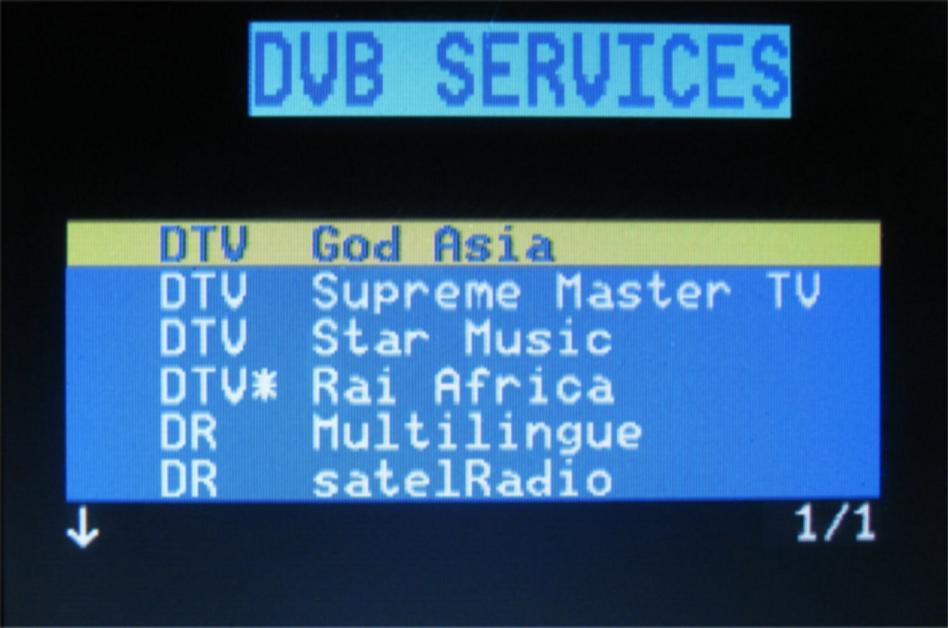

3 808 V : Packet RRSat Global 3 808 V : NIT nr.1 3 808 V : NIT nr.2

                                                                      3 808 V : Packet RRSat Global


                                                    Tandberg TT 1260 : download measurement results

2 - 4 034 V : Packet DD Doordarshan India
Intelsat 10 at 68.5 e_global footprint in C band_4 034 V DD Doordarshan_spectral analysis n

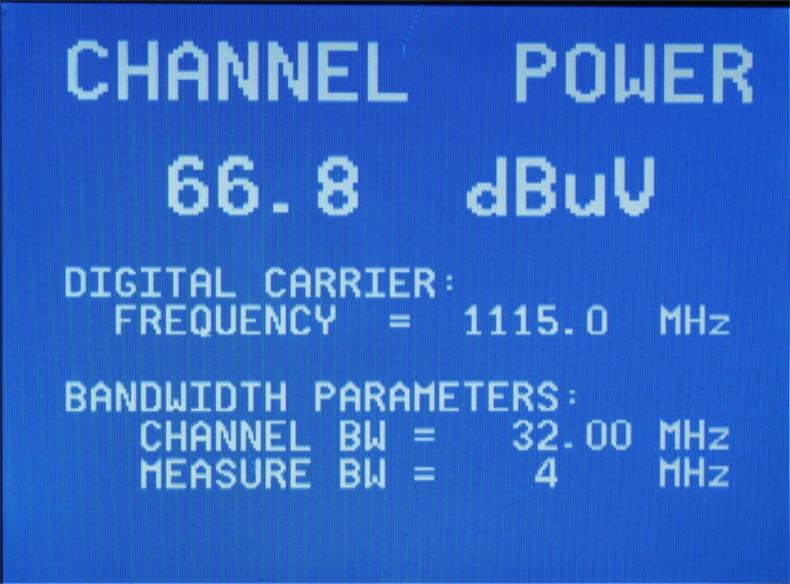

4 034 V : Q data 4 034 V : Channel Power 4 034 V : C/N

Transport stream 01 Transport stream 02 Transport stream 03

                                                                             4034 V : DD Doordarshan


                                                       Tandberg TT 1260 : download measurement results

Intelsat 10 at 68.5°E - Global footprint in C band : 3 808 V & 4 034 V / snapshots
