Insat 4B at 93.5°E-Indian beam : DD Direct plus & reception quality
Insat 4B at 93.5°E-DD Direct plus : footprint , measurement point , HF system ...
.
Insat 4B at 93.5°E -Indian beam in KU band : measurements taken in the town of Lučenec / central Slovakia
a, geographical location : Latitude: 48.33° _ Longitude: 19.72°
b, measurement results are derived from the 3.7 m diameter antenna
c, ground without obstacles in the horizon length to 1000 m
d, date of measurement : 19.2.2011
e, elevation angle : 2.0°
d, weather conditions : cloudy with rain !!!
e, air temperature : from 0 to 5 °C
f, altitude : 185 m /asl
g, installation period and aggregation measured data : from 7.00 to 16.00 p.m.
.
- Practice verified signal coverage before and after the failure of the satellite during the summer of last year 2010 -
Asia , Middle East , East & Central & parts of Southern Europe : before Dmin=200-250+ cm and now Dmin=270-450+ cm
Central Africa : possibility of stable reception for all packets from the network DD Direct plus is excluded up to 800 cm
diameter antenna
.
--- Insat 4B at 93.5°E-footprint : theoretically defined satellite footprint for KU band ---
/ Antrix corporation limited India /
- with a high degree of probability, I can confirm that the satellite Insat 4B radiating diagrams for C and KU bands cover
nearly identical parts of the earth's surface but with different high radiated power.Compared with the C-band diagram
radiated power decreases in the KU band much faster north-westerly direction on the European continent, as confirmed
by the results of my measurements.Until the beginning of a satellite failure I reached in reception in the C and KU bands
exceptionally high gain levels with a zero level of BER before vitterbi decoder for several transfers .
click for enlarge
--- Insat 4B at 93.5°E : HF system , geographical location of measurement ---
.
installed HF system theoretical footprint research point
a, PF Prodelin 3.7 m a, state : Slovak republic / Europe
b, UNI LNB : NF=0.4-0.6 dB b, town : Lučenec
d, cable lenght : 40 m c, geo. location : 48.33°_19.72°
.
Insat 4B at 93.5°E-DD Direct plus & archived results of the measurements over the past 28 months
.
- Insat 4B at 93.5°E-DD Direct plus : 19.2.2011 & spectrum analysis of the vertical vector from 10 950 to 11 150 MHz -
--- DD Direct Plus & weather conditions : cloudy with rain !!!
click for enlarge
--- DD Direct plus & reception status of 19.2.2011 ---
10 990 > 11 150 : even in bad weather conditions (cloudy with rain) I have identified a stable form of lock on the three
carrier with a permanently oscillating gain margin in the range from MER=1.5 to 4 dB & bBER=1x10-3 > 9x10-3 .In this
case is significantly reflected low sensitivity of measuring devices (Rover,Unaohm) with the detection threshold of 2 dB
higher than normal receiver brands Vantage !
--- DD Direct plus & reception status of 18.9.2010 ---
in ideal weather conditions for receipt of Insat 4B satellites and the elevation angle of only 2° I identify periods in length to ten
minutes, during which the gain margin did not fall below the threshold level of detection at MER=4 dB and constantly oscillated
in the "gain range" from MER=6 to 10 dB,which perfectly expresses the following spectrum analysis function Peak memory.
Subsequent slight deterioration in weather conditions have a direct relationship with increased oscillation EIRP levels and
frequent outages in the locked carrier packet DD Direct + !
--- DD Direct plus & reception status of 15.8.2010 ---
EIRP transmission power level in the central European zone fell by an average of 40-45%,which is reflected in the quality
of reception follows.Average reception quality, expressed in the unit MER=9.5-11.5 dB (with occasional peak at MER=15+ dB)
now has fallen to a level within MER=7.5-8.5 dB with occasional peak at MER=11+ dB.Reception is significantly disturbed
by permanent oscillation, which within a period of three minutes, reaching two peaks in the range of amplitude MER from
4 dB-levels of detection to MER=8-11 dB .This is an unstable form of revenue with a high level of variable gain within
MER= +/-3.5 dB _ 180 sec .
.
.
- I'll choose from a number of archived results of measurements in the Think-Tank dxsatcs.com -
--- Insat 4B at 93.5°E & archived results of measurements I made on 10.08.2008 ---
installed HF system : PF Prodelin 3.7 m,Mechanical polarizer Hirschmann CSP 1210 C and LNB SMW WDL Digital type E
click for enlarge
11 070 V - DD Direct + 11 070 V - DD Direct +
Network Information Table Q analysis : Ch BER=2.69E x 10-4
11 570 V - DD Direct + 11 570 V - DD Direct +
Network Information Table Q analysis :Ch BER=1.08E x 10-3
.
--- Insat 4B at 93.5°E & archived results of measurements I made on 11.04.2009 ---
installed HF system : PF Prodelin 3.7 m,Mechanical polarizer Hirschmann CSP 1210 C and LNB SMW WDL Digital type E
click for enlarge
11 150 V - DD Direct + 11 150 V - DD Direct +
Q analysis : Ch BER=4.14E x 10-4 Network Information Table
11 150 V - DD Direct + 11 150 V - DD Direct +
Q analysis : Ch BER=2.09E x 10-3 Network Information Table
.
--- Insat 4B at 93.5°E & archived results of measurements I made on 10.06.2009 ---
installed HF system : PF Prodelin 3.7 m,Mechanical polarizer Hirschmann CSP 1210 C and LNB SMW WDL Digital type E
click for enlarge
11 150 V - DD Direct + 11 150 V - DD Direct +
Q analysis : Ch BER=4.53E x 10-5 Network Information Table
11 150 V - DD Direct + 11 150 V - DD Direct +
Q analysis : Ch BER=1.86E x 10-4 Network Information Table
.
--- Insat 4B at 93.5°E & archived results of measurements I made on 31.10.2009 ---
installed HF system : PF Prodelin 3.7 m,Mechanical polarizer Hirschmann CSP 1210 C and LNB SMW WDL Digital type E
click for enlarge
11 070 V - DD Direct + 11 070 V - DD Direct +
IF data Q analysis : Ch BER=2.0E x 10-4
11 150 V - DD Direct + 11 150 V - DD Direct +
IF data Q analysis : Ch BER=2.0E x 10-5 !!!
.
Insat 4B-DD Direct plus : 10 990 > 11 570 V-polarity & actual results of the measurements
.
--- DD Direct Plus : actual results of measurements I made on 19.2.2011 ---
--- DD Direct Plus & weather conditions : cloudy with rain !!!
.
Insat 4B at 93.5°E - DD Direct plus : 10 990 V Packet DD Direct + India
IF data Q data NIT data
Insat 4B at 93.5°E - DD Direct plus : 11 070 V Packet DD Direct + India
IF data Q data NIT data

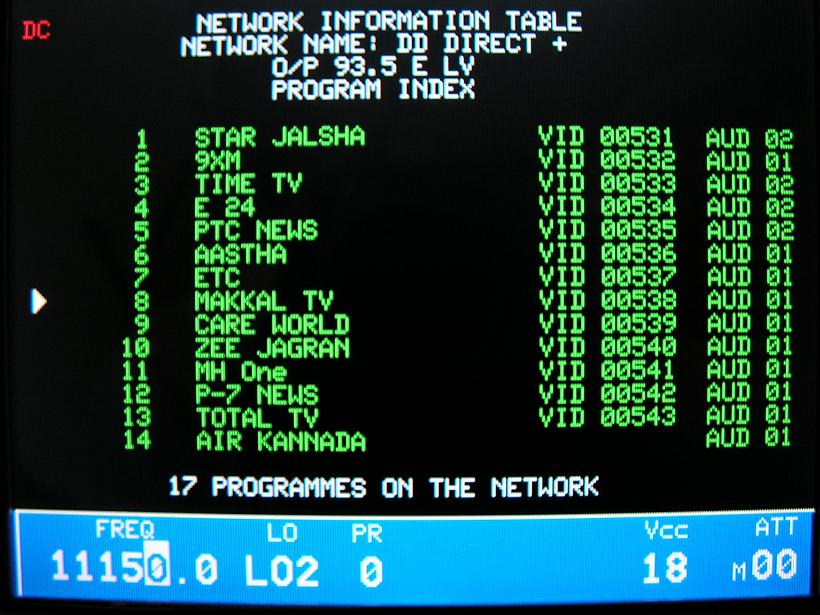

Insat 4B at 93.5°E - DD Direct plus : 11 150 V Packet DD Direct + India
IF data Q data NIT data
Insat 4B at 93.5°E - DD Direct plus : 11 490 V Packet DD Direct + India
IF data Q data NIT data
Insat 4B at 93.5°E - DD Direct plus : 11 570 V Packet DD Direct + India
IF data Q data NIT data
.
Insat 4B at 93.5°E-DD Direct plus : live video recording of the instantaneous changes in the quality
.
--- DD Direct Plus : 10 990 V - immediate changes in quality within a span of 60 seconds ---
--- DD Direct Plus & weather conditions : cloudy with rain !!!
.
--- DD Direct Plus : 11 070 V - immediate changes in quality within a span of 60 seconds ---
--- DD Direct Plus & weather conditions : cloudy with rain !!!
