Insat 3A/4B at 93.5°E-DD Direct Plus India

Insat 3A/4B at 93.5°E-DD Direct Plus :Technical data

.
                                  DD Direct Plus network India : 11 490 V DW Asia _ qualitative peak MER=10.2 dB
Insat 4B at 93.5 E_indian footprint_dd direct plus-11 490 v 001 nn

                             Insat 4B - Position : 93.5°E - TP : 12 C/12 KU - Lifetime : from 11.3.2007 - 12 years



Insat 4B at 93.5°E-footprint of the KU band: DD Direct Plus_spectrum & quality analysis

  Insat 4B at 93.5°E - Indian footprint :DD Direct Plus-measurements taken in the town of Lučenec / central Slovakia
                                     geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                                 measurement results are derived from the 3.7 m diameter antenna
                                                          date of measurement : 15.8.2010
                                                                     elevation angle : 2.0°


                  High Frequency Unit                               point measurements                          Insat 4B at 93.5°E
                    PF Prodelin 3.7 m                       all research and measurements           Packet DD Direct Plus India
    dxsatcs waveguide line+Norsat 4206 CF      I carried out at this point                  value of the elevation angle
Insat 4B at 93.5 e_Indian footprint_sun direct_PF Prodelin 3.7 mInsat 4B at 93.5 e_indian footprint_sun direct_reception point at lucenec slovakiaInsat 4B at 93.5 E_indian footprint_dd direct plus-value of the elevation angle                                                                                                      --- Insat 4B at 93.5°E -Packet DD Direct plus : footprint ---

                                                  --- Insat 4B-theoretical footprint of the KU band ---
                                                real coverage area : Asia , Middle East , part of Europe
                                                                                 click for enlarge

     Insat 4B at 93.5 E-indian footprint-source antrix india-n
                       ---   Packet DD Direct Plus India : spectral analysis & spectral function PEAK MEMORY  ---

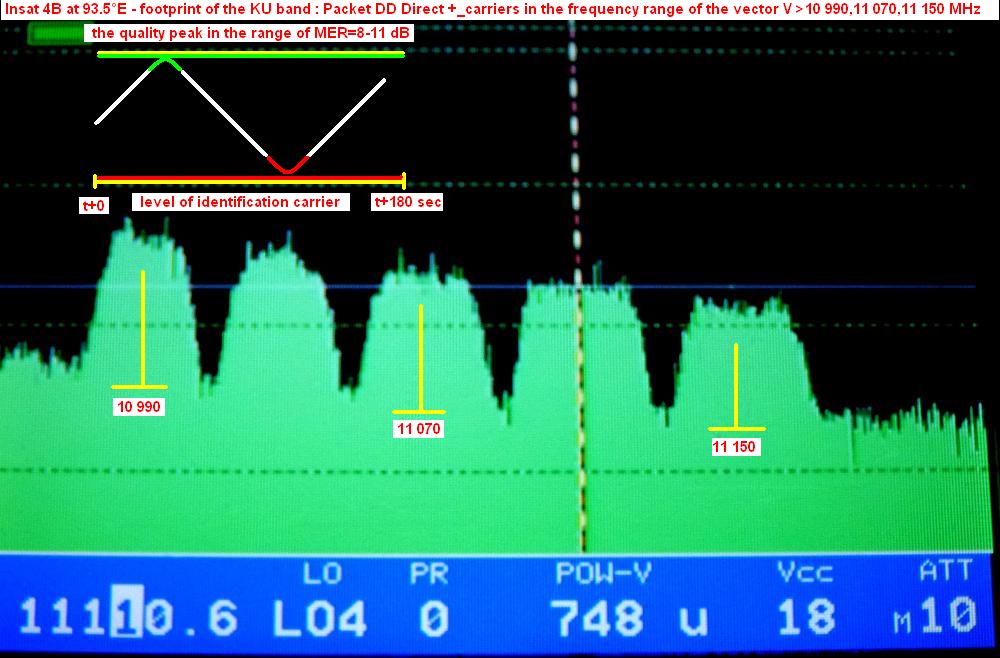

                              DD Direct Plus : spectral analysis No.1    >>>        PEAK MEMORY _ period 180 sec
                                V vector : 10 990 , 11 070 , 11 150                permanent oscillation in a wide range
                              Insat 4B at 93.5 E_indian footprint_dd direct plus-spectral analysis 01            Insat 4B at 93.5 E_indian footprint_dd direct plus-spectral analysis-peak memory 01

                               DD Direct Plus : spectral analysis No.2   >>>       PEAK MEMORY _ period 180 sec
                                        V vector : 11 490 , 11 570                       permanent oscillation in a wide range
                              Insat 4B at 93.5 E_indian footprint_dd direct plus-spectral analysis 02            Insat 4B at 93.5 E_indian footprint_dd direct plus-spectral analysis-peak memory 02

- time of measurement :15.8.2010 -
                                                                      - defining the status of reception -


current reception status in Central Europe, after a significant decline in power transmission of 7.7.2010:

EIRP transmission power level in the central European zone fell by an average of 40-45%,which is reflected in the quality
of reception follows.Average reception quality, expressed in the unit MER=9.5-11.5 dB (with occasional peak at MER=15+ dB)
now has fallen to a level within MER=7.5-8.5 dB with occasional peak at MER=11+ dB.Reception is significantly disturbed
by permanent oscillation, which within a period of three minutes, reaching two peaks in the range of amplitude MER from
4 dB-levels of detection to MER=8-11 dB .This is an unstable form of revenue with a high level of variable gain within
MER= +/-3.5 dB _ 180 sec .

                                                               --- Insat 4B : measurement results ---

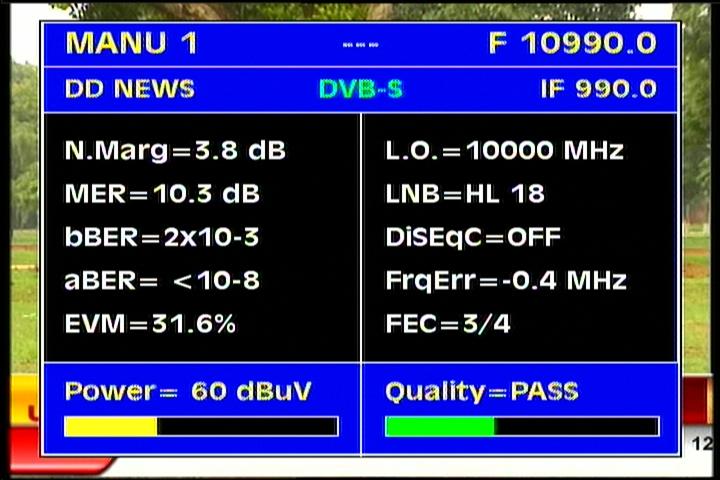

                                          Insat 4B at 93.5°E - KU Asia footprint : 10 990 V DD Direct + India
                         IF data                                                     Q data                                                    NIT data
Insat 4B at 93.5 E_indian footprint-10 990 V dd direct plus-IF dataInsat 4B at 93.5 E_indian footprint-10 990 V dd direct plus-Q dataInsat 4B at 93.5 E_indian footprint-10 990 V dd direct plus-NIT data

                                       Insat 4B at 93.5°E - KU Asia footprint : 11 070 V DD Direct + India
                         IF data                                                     Q data                                                    NIT data
Insat 4B at 93.5 E_indian footprint-11 070 V dd direct plus-IF data  Insat 4B at 93.5 E_indian footprint-11 070 V dd direct plus-Q dataInsat 4B at 93.5 E_indian footprint-11 070 V dd direct plus-NIT data

                                       Insat 4B at 93.5°E - KU Asia footprint : 11 150 V DD Direct + India
                         IF data                                                     Q data                                                    NIT data
Insat 4B at 93.5 E_indian footprint-11 150 V dd direct plus-IF dataInsat 4B at 93.5 E_indian footprint-11 150 V dd direct plus-Q dataInsat 4B at 93.5 E_indian footprint-11 150 V dd direct plus-NIT data

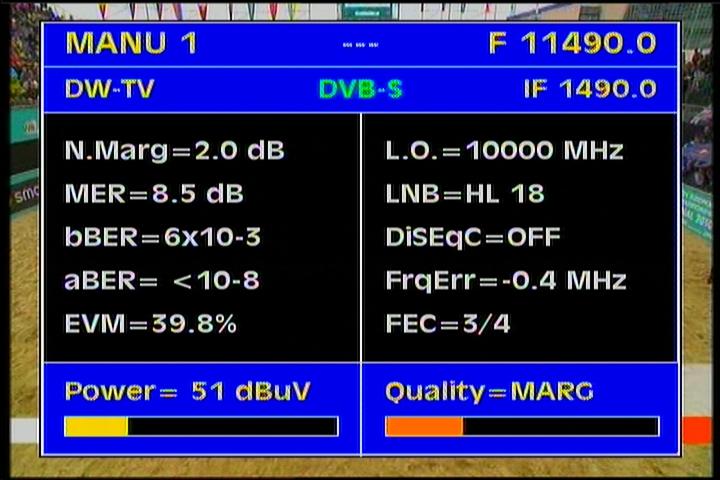

                                     Insat 4B at 93.5°E - KU Asia footprint : 11 490 V DD Direct + India
                         IF data                                                     Q data                                                    NIT data
Insat 4B at 93.5 E_indian footprint-11 490 V dd direct plus-IF dataInsat 4B at 93.5 E_indian footprint-11 490 V dd direct plus-Q dataInsat 4B at 93.5 E_indian footprint-11 490 V dd direct plus-NIT data

                                      Insat 4B at 93.5°E - KU Asia footprint : 11 570 V DD Direct + India
                         IF data                                                     Q data                                                    NIT data
Insat 4B at 93.5 E_indian footprint-11 570 V dd direct plus-IF dataInsat 4B at 93.5 E_indian footprint-11 570 V dd direct plus-Q dataInsat 4B at 93.5 E_indian footprint-11 570 V dd direct plus-NIT data

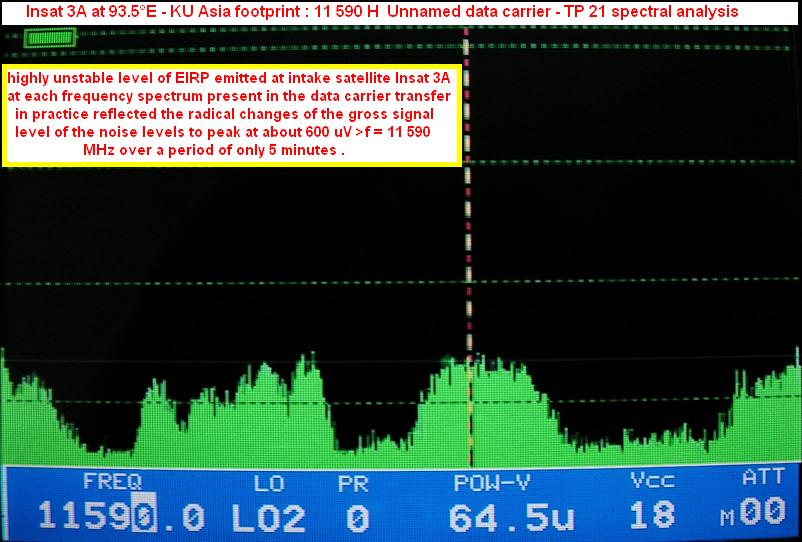

Insat 3A at 93.5°E-footprint of the KU band : spectral analysis & footprint & actively carriers
