DD HD India : the first HD broadcasts in the packet DD Direct + and an analysis of the reception
                                          of Insat 4B satellites in Central Europe

a, Insat 4B at 93.5°E-DD HD in the packet DD Direct + : indian beam which define the satellite operator
b, Insat 4B at 93.5°E-DD HD in the packet DD Direct + : spectral analysis of the vertical wave vector
c, Insat 4B at 93.5°E-DD HD in the packet DD Direct + : Peak Memory - spectrum analysis function in practice
d, Insat 4B at 93.5°E-DD HD in the packet DD Direct + : results of quality measurement and reception conditions
e, Insat 4B at 93.5°E-DD HD in the packet DD Direct + : video recording of spectrum analysis and carrier lock with DD HD
f,  Insat 4B at 93.5°E-DD HD in the packet DD Direct + : Image of HD video broadcasting
g, Insat 4B at 93.5°E-DD HD in the packet DD Direct + : videos of the Indian broadcasting HD

a, DD HD in the packet DD Direct + : indian beam which define the satellite operator

Insat 4B at 93.5°E - Indian footprint :research activities and the measurement is in town Lučenec-central Slovakia
                                     geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                                 measurement results are derived from the 3.7 m diameter antenna
                                         ground without obstacles in the horizon length to 1000 m
                                                          date of measurement : 18.9.2010
                                                                 elevation angle : only 2.0°


                  High Frequency Unit                             point measurements                          Insat 4B at 93.5°E
                    PF Prodelin 3.7 m                       all research and measurements           Packet DD Direct Plus India
    dxsatcs waveguide line+Norsat 4206 CF      I carried out at this point                  value of the elevation angle
                                                                                                     --- Insat 4B at 93.5°E -Packet DD Direct plus : footprint ---

                                                  --- Insat 4B-theoretical footprint of the KU band ---
                                                real coverage area : Asia , Middle East , part of Europe
                                                                                 click for enlarge

.

b, DD HD in the packet DD Direct + : Insat 4B at 93.5°E-spectral analysis of the vertical wave vector

         - identification of the carrier packet DD Direct + in the spectrum of the vertical vector of the satellite Insat 4B -
                                                                        click for enlarge

.

c, DD HD in the packet DD Direct + : Peak Memory - spectrum analysis function in practice

  - function that defines the amplitude of the oscillation EIRP levels over a period of 20 min. in ideal weather conditions -
                                                                             click for enlarge

.

d, DD HD in the packet DD Direct + : results of quality measurement and reception conditions

                   - 10 990 V packet DD Direct + India : MPEG-4 /FTA - DD HD in the network information table -
                                                                     click for enlarge

 DD HD : Commonwealth games promo               DD HD : quality analysis                               DD HD : NIT data


current reception status in Central Europe, after a significant decline in transmission power of 7.7.2010:

                                                   ___ reception status of 15.8.2010 ___
EIRP transmission power level in the central European zone fell by an average of 40-45%,which is reflected in the quality
of reception follows.Average reception quality, expressed in the unit MER=9.5-11.5 dB (with occasional peak at MER=15+ dB)
now has fallen to a level within MER=7.5-8.5 dB with occasional peak at MER=11+ dB.Reception is significantly disturbed
by permanent oscillation, which within a period of three minutes, reaching two peaks in the range of amplitude MER from
4 dB-levels of detection to MER=8-11 dB .This is an unstable form of revenue with a high level of variable gain within
MER= +/-3.5 dB _ 180 sec .

                                                   ___ reception status of 18.9.2010 ___
in ideal weather conditions for receipt of Insat 4B satellites and the elevation angle of only 2° I identify periods in length to ten
minutes, during which the gain margin did not fall below the threshold level of detection at MER=4 dB and constantly oscillated
in the "gain range" from MER=6 to 10 dB,which perfectly expresses the following spectrum analysis function Peak memory.
Subsequent slight deterioration in weather conditions have a direct relationship with increased oscillation EIRP levels and
frequent outages in the locked carrier packet DD Direct + !

.

e, DD HD in the packet DD Direct + : video recording of spectrum analysis and carrier lock with DD HD

      - MPEG-4 /FTA - DD HD India in the packet DD Direct + : LIVE spectrum + quality analysis , NIT -

.

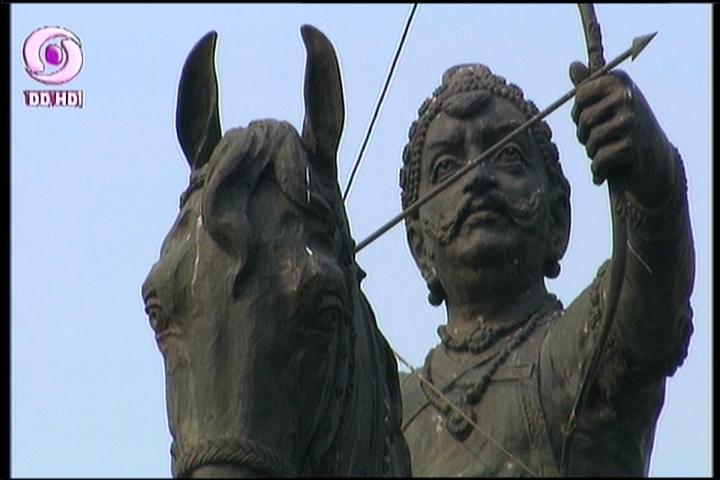

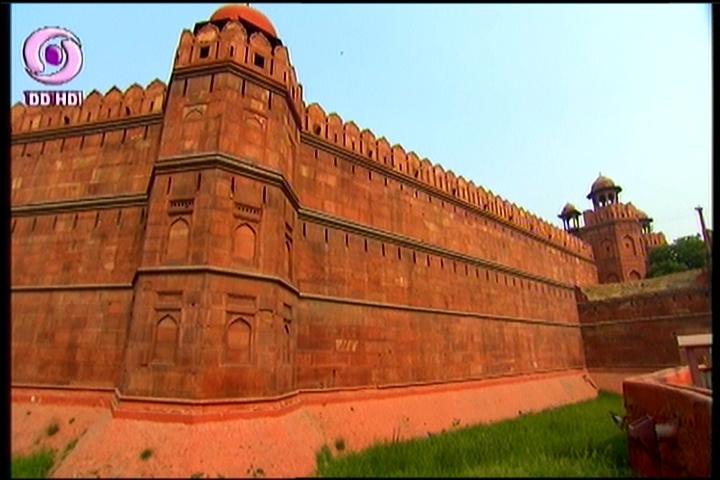

f, DD HD in the packet DD Direct + : Image of HD video broadcasting _ 1920x1080_interlaced

.
       - MPEG-4 /FTA - DD HD India in the packet DD Direct + : Delhi 2010 / Commonwealth Games promo -

.

g, DD HD in the packet DD Direct + : videos of the Indian broadcasting HD

.
     - MPEG-4/HD/FTA - DD HD India in the packet DD Direct + : Delhi 2010 / Commonwealth Games promo -
